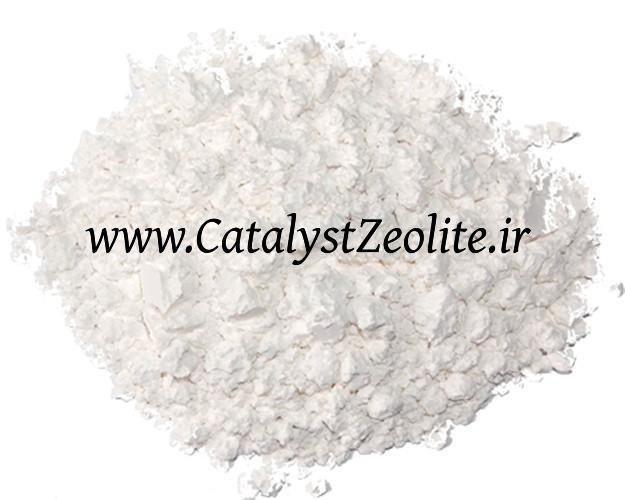

3um SSZ-13 Zeolite Powder CAS 1318 02 1

Product Details:
Place of Origin: Iran
Brand Name: CC Co.
Certification: ISO9001:2015
Model Number: SiO2/Al2O3=10-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD40000-100000 Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: After Negotiation
Payment Terms: T/T, L/C
Detailed Product Description
Color: White Powder SiO2/Al2O3: 10-100
BET: 500-700 Size: 2-3um
Application: Removal NOx / Gas Separation Na2O: 0.05
CAS: 1318-02-1
High Light: CAS 1318 02 1 Zeolite powder

CAS 1318 02 1 SSZ-13 Zeolite Powder

3um SSZ-13 Zeolite



SSZ-13 Zeolite With CHA Structure For Removal NOx / Gas Separation



SiO2/Al2O3 Mole Ratio: 22
Na2O Weight %: 0.05
Surface Area, m2/g:530
Size:2-3um

SSZ-13 (framework type code CHA) is an aluminosilicate zeolite mineral possessing 0.38 × 0.38 nm micropores.[1] It belongs to the ABC-6 family of zeolites as well as offretite, cancrinite, erionite and other related minerals.[2] The framework topology is the same as that of chabazite but SSZ-13 has high-silica composition with Si/Al > 5 which leads to low cation exchange capacity. The typical chemical formula of the unit cell can be described as QxNayAl2.4Si33.6O72•zH2O (1.4 < x <27)(0.7 < y < 4.3)(1 < z <7), where Q is N,N,N-1-trimethyladamantammonium.[1] The material was patented by Chevron research Company in 1985,[3] and has a potential use as a solid catalyst for the methanol-to-olefins (MTO) process and the selective catalytic reduction (SCR) of NOx.



SSZ-13 is a high silica zeolite with the CHA topology. Materials with this topology are of industrial interest, as potential catalysts for application in the methanol to olefins (MTO) reaction.

Recently SSZ-13 has attracted attention as the catalyst for selective catalytic reduction (SCR) of NOx. Actually copper-loading SSZ-13 is industrially applied to the emission control of diesel engines.

SSZ-13 shows superior performance in NOx abatement,methanol to olefin (MTO) and adsorption and separation of gas.



SSZ-13 Zeolite

is composed AlO4 and SiO4 tetrahedra joined by oxygen atoms inclusive, orderly arranged to have eight yuan spheroidal cage ring structure (0.73 nm × 1.2 nm) and three-dimensional intersection pore structure (Figure 1), pore size of 0.38 nm × 0.38 nm, a specific surface area of ​​up to 700 m2 / g. Since SSZ-13 has ordered pore structure, good hydrothermal stability, there is more surface acidic proton center and exchangeable cations and other characteristics, so the removal of NOx in the exhaust, methanol to olefins (MTO), CO2 adsorptive separation exhibits excellent performance
